Features

GA-52Cx Features

Schonstedt’s underground magnetic locators have been setting the standards for reliability and dependability for over 40 years. They are designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions.

  • Unmatched sensitivity allows you to find what you’re looking for quickly, without the risk of passing over your target.
  • Our locators last 100% to 250% longer than others, making your investment a solid one.
  • 85% of the Surveyor market can’t be wrong.

Easy-To-Use

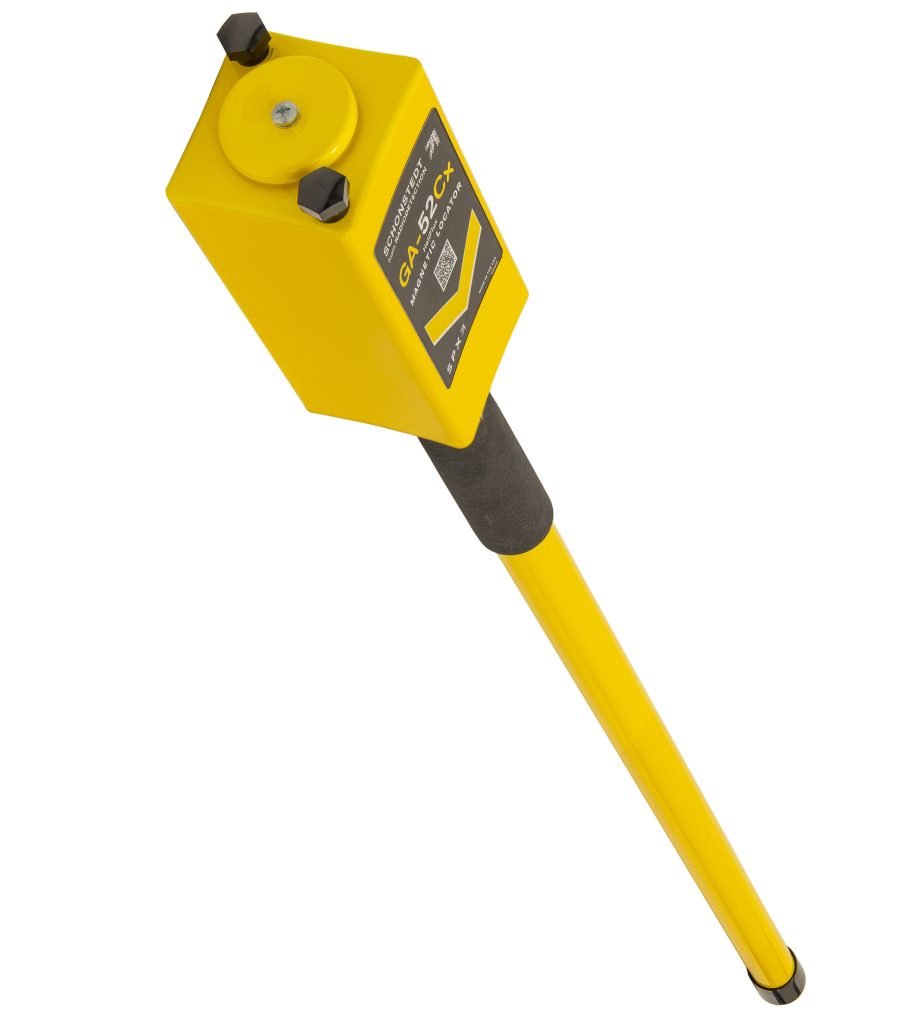

The GA-52Cx Locator detects the magnetic field of iron and steel objects. Both provide audio detection signals that peak in frequency when the locator’s tip is held directly over the target.

No. 1 Around the World in Performance and Reliability

Only two Controls! Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.

  • Most Sensitive
  • Audio Output
  • 5 Levels of Sensitivity
  • No response to aluminum, brass, or copper
  • Patented HeliFlux® sensors
  • Modular construction; high performance components
  • 7-year warranty
Specifications

GA-52Cx Specifications

Input PowerSupplied by two alkaline 9-V batteries
Battery Life40 hours (intermittent usage)
OutputApproximately 40 Hz idle tone in speaker. Tone frequency increases (or decreases) with gradient-field intensity.
WeightApproximately 2.5lb. (1.13 kg.)
Operating Temp-13° to 140°F (-25° to 60°C)
Overall Length42-5/16 in. (107.4 cm)
Waterproof Length34-1/2 in. (87.6 cm)
Nominal Sensor Spacing20 in. (50.8 cm)
ConstructionRugged, modular all solid state in aluminum casing

(We reserve the right to change specifications)

Standard Equipment

GA-52Cx Standard Equipment

  • Carrying Case (p/n: 206038)
  • 2 – 9V Alkaline Batteries (in unit) (p/n: B11013)
Accessories

GA-52Cx Accessories

The following accessories are available to meet every locating need.

  • Headset (p/n: H30006)
