Maggie
Magnetic Locator

Operations Manual
Last modified 17/10/2018
Schonstedt Maggie Magnetic Locator Pin Finder

Table of Contents

Introduction

The MAGGIE Magnetic Locator detects the magnetic field of ferromagnetic objects. It responds to the difference in the magnetic field between two sensors that are spaced approximately 20 inches apart. This difference is referred to as the “signal strength” throughout this manual and is represented in the instrument by an audio tone, the display of a bar graph, and a numeric indication. In addition, the polarity of the signal strength is shown as a + or – sign on the display, and determines the side (right or left) on which the bar graph is displayed. Although most objects can be located using the audio indication alone, simultaneous use of the audio and visual responses will provide additional information to help you pinpoint a target and determine its orientation.

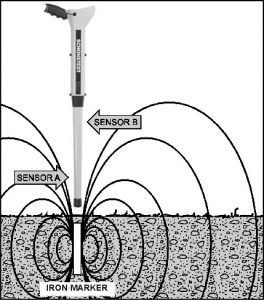

The below graphic illustrates an application of MAGGIE in which it is used to detect an iron marker of the type used for property line identification. As shown, the magnetic field of the iron marker is stronger at sensor A than it is at sensor B. This creates a signal strength that is larger than zero, (which would occur when the field strength is the same at both sensors).

The audio response of MAGGIE is designed so that the frequency of the audio tone increases as the detected signal strength increases. As a result, the frequency of the audio output is higher than the idling frequency (~ 30 Hz) which exists when the signal strength is approximately zero. This larger signal strength also causes the bar graph display to peak in either the positive or the negative direction.



Schonstedt Maggie Magnetic Locator Finds Iron Marker Property Pin

Operating Controls

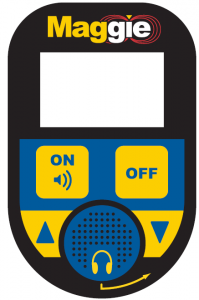

Schonstedt Maggie Membrane Switch



ON / Volume

  • To turn the unit on, push this button.  Upon turn on, the volume defaults to HIGH. Pushing the button a second time changes the volume to MEDIUM. Pushing the button a third time MUTES the volume. Additional pushes of this button cycle the volume through HIGH-MEDIUM-MUTE.

OFF

  • To turn the unit off, push this button.

GAIN

  • The sensitivity of the unit can be increased (to detect smaller objects at greater depths) or decreased (to detect larger objects at smaller depths) by adjusting the gain up or down pushing the UP or DOWN arrow buttons.

Visual & Audible Indicators

Gain Level Indicator

The gain range is indicated by a 4-segment LCD: L (Low), M (Medium), H (High) and XH (Extra High).  Upon turn on, the gain defaults to M (Medium).  Each press of the UP or DOWN arrow buttons will cause the gain level indicator to change accordingly.



Gain Level Indicators

Gain Level Indicators



Battery Level Indicator

The battery level is indicated by a 4-segment LCD indicator.  When all four segments are black the voltage level is between 100% and 75%.  As the voltage decreases, the number of black segments decreases.  Battery life varies with usage and the ambient temperature.  Cold temperatures reduce battery life.  Low temperatures may result in only two or three segments being black.  This could be temporary and all segments will change to black as the temperature increases.



Battery Voltage Status Indicators



Signal Strength & Polarity Indicator

The signal strength, defined as the difference, or delta (Δ), between the magnetic field detected at the top and bottom sensors, is shown as a numerical indication in mG (milligauss) units, preceded by the polarity of the signal (+ or -), and followed by the Δ symbol, to emphasize that it represents a “difference” between the two ends of the sensor array.



In addition, the signal strength is shown in a semi-circular bar graph, with more bars indicating a stronger signal.  The bar graph will switch to the + (right) or – (left) side, depending on polarity.  Finally, the signal strength is also indicated by the frequency of the audio signal, a higher audio frequency indicates a stronger signal.



Signal Strength Visual Indicators





Connectors & Accessories

Headphone Jack

The headphone jack is located on the side of the unit near the face of the locator.  Headphones are optional, and may be purchased from Schonstedt as an accessory.  The headphone jack is monaural.  Standard stereo headphones available from many sources can be used, but they will produce sound in only one ear.  When the headphones are plugged in, the speaker sound will be muted, but the ON/Volume button still controls the volume of the headphones.



Headphone Jack Plug

A Headphone/Earphone Jack Plug has been included with this product. It is recommended that the plug remain inserted into the jack any time that headphones are not in use. This aids in making the instrument more water-resistant.

Battery Replacement

Schonstedt Maggie Battery Door and Compartment

MAGGIE is powered by one 9-volt disposable battery.  The battery is located in the handle of the instrument and can be accessed by turning the screw counterclockwise by hand or with the use of a screwdriver or coin.  To remove the battery, simply tilt the unit so that the handle is pointing down, and the battery will slide out.  When replacing the battery, look at the outside of the battery door for the proper battery orientation.  As a safety measure the unit will not turn on if the battery is not inserted correctly. You should never have to force the battery door closed.  If the battery does not seem to be going in all the way, remove the battery, reverse its orientation and then replace it.

Locating & Detecting Buried Iron Objects

Maggie Standing

Search Procedure



Turn the instrument ON, the gain defaults to Medium (M). Grasp the locator as illustrated in Figure 9.  Because the upper sensor is near the handle of the locator, wristwatches may produce unwanted changes in the audio signal and in the meter indications, and should be removed.  Keep the locator away from your shoes since they might contain magnetic material.  To obtain maximum area coverage, sweep the locator from side to side.  When the locator comes within range of an iron object, the signal strength will peak, causing the frequency of the audio signal to peak, the bar graph to expand in the positive or negative direction, and the digital readout to peak as well.



Visual Indicators within range of an iron marker magnetic locator schonstedt maggie

Visual Indicators within Range of an Iron Object



NOTE The number of bars shown in the bar graph, the number displayed in the digital readout, and the frequency of the audio signal will all depend on the signal strength, which is affected by the type of iron object detected, its orientation, and the gain setting.



Basic Signal Patterns

When MAGGIE is positioned directly over a vertical target, the signal strength will peak (audio signal, digital readout, and bar graph) at either a positive or negative polarity.

The audio signal, digital readout, and bar graph indications also peak over each end of a horizontal target.  One end is positive, the other is negative.  This will help you to distinguish between two vertical pipes or one horizontal pipe.  Usually two vertical pipes buried in close proximity will produce bar graph indications with the same polarity.

Schonstedt Maggie Magnetic Locator Magnetometer Signals from Vertical and Horizontal Targets

Signals from Vertical and Horizontal Targets



After you have detected the presence of a target, hold the locator vertically and slowly move it back and forth in an “X” pattern while listening to the audio response and observing the bar graph indicator.  For a given gain setting the number of bars will be greatest when the locator is directly over a vertical target, and over the ends of a horizontal target.  The “X” pattern, as shown in Figure 12, is ideal for pinpointing small objects.  A 1-1/4 inch PK nail buried up to 12 inches can be located precisely with this technique.



X Pattern Provides Precision Locating Maggie Schonstedt Magnetic Locator Magnetometer

“X” Pattern Provides Precision Locating



If you are looking for a corner marker and detect two or three signals in the same general vicinity, raise the locator several inches above the ground, or decrease the gain setting before you get a shovel.  Any signal that disappears when the locator is held higher, or the gain is decreased, is probably coming from a smaller target.  The signal from a rusty bolt or other small item is much weaker than the signal from a larger target, such as an 18-inch length of 3/4 inch rebar which can be located at depths up to 10 feet.



Decreasing Gain locating with a Schonstedt Magnetic Locator

Decreasing the gain eliminates unwanted signals



Strongly Magnetized Markers



A strongly magnetized marker at or near the surface provides a weaker indication on both sides of the marker that could be mistaken for the marker.

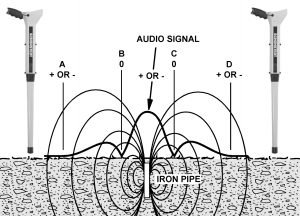

The heavy line in the graphic below represents the increase and decrease in the audio and bar graph indications as you move the locator over a marker.  Between points A and B the signals increase slightly and then decrease.  Just beyond B the signals increase rapidly, peak directly over the marker and then decrease at point C.  From C to D the signals increase and decrease again.  So if you do not move the locator completely across the marker you might assume that the weaker indication on either side of the marker is its location.  The two weaker indications occur because the locator is extremely sensitive to the magnetic field components parallel to its long axis.  At points B and C the field is perpendicular to the locator so no significant audio or bar graph indications are produced at these points.



Strongly Magnetized Markers - Schonstedt Maggie Magnetic Locator magnetometer pin finder



Correct Stake Orientation



When placing stakes, correct orientation is important. For checking purposes, the orientation of the pin relative to the locator is shown in the below graphic.  Check the pin with one orientation.  Then rotate the pin 180°.  The orientation which gives the largest reading is the one that should be used.  This reading should be positive in the Northern Hemisphere, and negative in the Southern Hemisphere.



An iron pin has two types of magnetization.  One is the magnetization induced by the Earth’s magnetic field.  The induced magnetization is always downward in the Northern Magnetic Hemisphere and produces a positive output no matter which end of the stake is driven into the ground.  The other type of field is the permanent magnetization which is fixed to the pin.  For maximum detection, the stake should be driven into the ground such that the permanent magnetization is in the same direction as the induced magnetization.



Maggie Magnetic Locator Schonstedt Pin Finder Correct Pin Orientation Property Corner Marker Magnet PK Nail



Locating Manholes, Septic Tanks, & Well Casings



The magnetic field is strongest at the edge of a shallow manhole cover.  You can easily trace the edges of covers near the surface.  Locating depth ranges up to 12 feet.



Find Manhole Covers with Schonstedt Maggie Magnetic Locator Magnetometer

Locating Manhole Covers



The great length of a well casing provides a strong field at the surface that makes it easy to locate casings buried up to 20 feet deep.



Schonstedt Find Well Casing with Magnetic Locator Magnetometer Detect

Locating Water Well Casings



MAGGIE can also be used to precisely locate the metal handles or reinforcing bars on septic tank covers at depths up to 6 feet.



Schonstedt Maggie Magnetic Locator Find Septic Tank Underground Buried

Signal Patterns provided by Septic Tank Covers



Locating & Tracing Barbed Wire



You can often trace barbed wire (from old fence lines) buried just beneath the surface.  Even if the wire is only a trail of rust, it can still be detected near the surface.  Tip the locator a little lower than usual – but not parallel with the ground.



Find Barbed Wire fence line schonstedt maggie magnetic locator pin finder magnetometer

Tracing Barbed Wire



Examine trees for bench marks and bits of embedded barbed wire.  Hold the locator parallel with the direction of the wire.



Find Barbed Wire Embedded in Trees Schonstedt Maggie Magnetic Locator

Tracing Pieces of Barbed Wire Embedded in Trees



Searching Areas along a Chain Link Fence



Searching in the vicinity of a chain link fence requires a reduced sensitivity setting and some control over the orientation of the locator.  Position the locator horizontally with its long axis perpendicular to the fence.  This insures that the upper sensor is kept away from the fence.

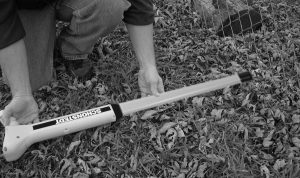

Locating near a chain link fence schonstedt maggie magnetic locator magnetometer pin finder



Perform the search by slowly moving the locator forward along the fence while also moving it to the right and to the left. This technique allows you to search an area several feet wide as you move forward. Listen for an abrupt drop in the signal that will occur when the lower sensor, located 1-1/2 inches from the end of the locator, is directly over the stake.  Any variation in the position of the locator will produce an abrupt rise in the frequency of the signal.



Schonstedt Maggie Locating Near Chain Link Fence

Abrupt Drop of Signal while Searching Along a Chain Link Fence



Locating Valve Boxes



Both the valve and its casing, when iron, provide strong magnetic fields, which make them easy to locate.  Plastic enclosures containing magnets (which are typically used with non-ferrous valve boxes) are easily located at depths of up to 11 feet.

Find Valve Boxes and Casings with Schonstedt Maggie Magnetic Locator Magnetometer

Locating Valve Boxes and Casings



Locating Cast-Iron Pipes



Cast-iron pipes produce the strongest magnetic signals at their joints.  After an initial sweep search identifies the general direction of the pipe, the steel pipe joints or transition points can be more accurately traced by the following procedure:

  1. Set the Sensitivity control for maximum (XH indication).
  2. Hold the locator vertically approximately 1 to 1-1/2 feet above the surface.
  3. Walk along without turning or tilting the locator.
  4. Mark the locations where the maximum signal levels occur.
  5. Return to an area of maximum signal strength and hold the locator several inches above the surface. The sensitivity will probably have to be reduced during this second pass.



Four-inch pipes joints and transition points can be located at depths up to 11 feet.



Detect Cast Iron Pipe Joints Schonstedt Maggie Magnetic Locator Magnetometer Metal Detector

Signal patterns provided by Cast-Iron Pipes



Locating Steel Drums



MAGGIE’s signal pattern will vary depending on the vertical or horizontal orientation of the drum and also how deep it is buried. A fifty-five gallon drum can be located at depths ranging from 5 to 12 feet.

Find Steel Drums Underground with Schonstedt Maggie Magnetic Locator

Signal Patterns provided by Steel Drums



Locating Ordnance & Weapons



The versatile, lightweight, cost-effective MAGGIE is also designed to aid EOD technicians and law enforcement officers during area search operations.



Locating Ammunition with a Schonstedt Magnetic Locator





  • A 175mm projectile can be located up to 4 feet deep.
  • An 81mm mortar can be located up to 14 inches deep.
  • MK81 low drag bombs can be located up to 10 feet deep.
  • A discarded hand gun can be located up to 14 inches deep.



Other Notes

  1. A burbling sound indicates the presence of an energized power line or the presence of 50/60Hz. This will not influence the meter indication unless associated with a magnetic structure.
  2. The instrument will not respond to non-ferrous metals such as gold, silver, copper, brass and aluminum.

Specifications

Audio OutputSignal increases in frequency with gradient field intensity. Idle frequency = 10 Hz
Display OutputExpanding bar graph indicates polarity (positive or negative) and relative signal strength
Battery Indicator4-segment LCD
Gain4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
Gain MemoryGain defaults to Medium when powering off/on
Volume3 Levels: Muted, Medium, and High
Input PowerOne 9V Battery
Battery Life24 Hours (intermittent use)
Operating Temperature -13°F to 140°F (-25°C to 60°C)
Overall Length32.5" (83 cm)
Nominal Sensor Spacing20" (50 cm)
WeightApproximately 2.6 lbs (1.2 Kg)
ConstructionHigh impact ABS
Dust & Water ProtectionRated IP54



This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.





Application of Council Directive(s): 2004/108/EC

Standard(s) to which Conformity is Declared: EN 61000-6-1:2001, EN61000-4-2, EN61000-4-3, EN 61000-6-3:2004, EN55022:1998  with Amendment A1:2000 (CISPR-22)

Service & Repairs

If your locator needs service, please return it to the Schonstedt factory (in its case) and complete a Repair Form with the following information:

  • Name
  • Address
  • Telephone and Fax Numbers
  • Email Address
  • Where Purchased
  • Date of Purchase
  • Description of Problem(s)
  • If unit is out of warranty, an estimate will be provided prior to service work being done.



For Service or Repairs, Ship locator to:

Schonstedt Instrument Company

100 Edmond Road

Kearneysville, WV 25430



Warranty

Schonstedt Instrument Company (Schonstedt) warrants each product of its manufacture to be free from defects in material and workmanship subject to the following terms and conditions.  The warranty is effective for 7 years* after the shipment by Schonstedt to the original purchaser.  Please complete the warranty registration card and send back to Schonstedt Instrument Company.



Schonstedt’s obligation under the warranty is limited to servicing or adjusting any product returned to the factory for this purpose and to replacing any defective part thereof. Such product must be returned by the original purchaser, transportation charges prepaid, with a description of the defect in writing. If the fault has been caused by misuse or abnormal conditions of operation, repairs will be billed. Specifically, this warranty does not cover product that has been subject to inundation by fire, water or other liquid intrusion, or units that have been damaged or compromised due to repair, alteration or modification by anyone other than an authorized repair representative.  Prior to a repair being performed by Schonstedt, a cost estimate will be submitted and no work will be completed until authorized by the customer. Batteries are specifically excluded under the warranty and should be addressed to the manufacturer of batteries in question.



Schonstedt shall not be liable for any injury to persons or property or for any other special or consequential damages sustained or expenses incurred by reason of the use of any Schonstedt product.



* For Military & EOD applications, the warranty is 1 year.

Parts & Accessories

Parts and accessories are available on shop.schonstedt.com. Use the links below to visit the listing in our store. If you need help, please contact Customer Care.
